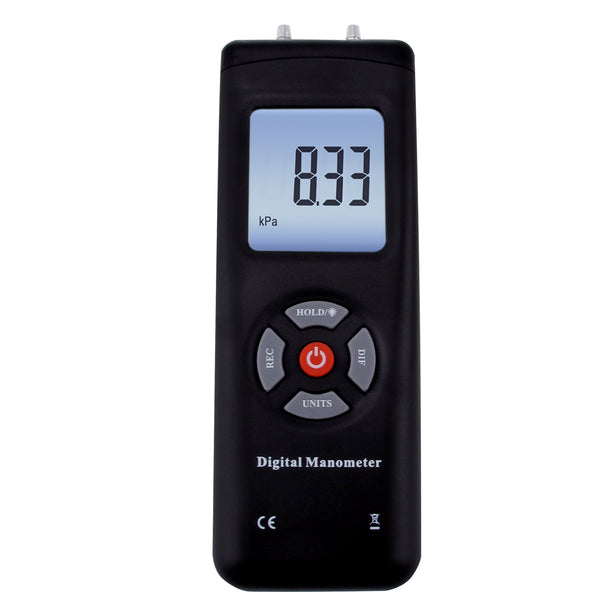

- This instrument can measure the air pressure of the single pipe or differential of two pipes.
- It is suitable for measuring of ventilation, air conditions system, widely used for gas measurement, calibration and any trouble shooting of any gas pressure systems.
- 11 selectable units of Measurement
- Pressure Range: ±2psi
- Repeatability: ±0.2% (Max±0.5%FSO)
DESCRIPTIONS: 11 selectable units of Measurement
Differential pressure measurement
Max / minimum / Average reading record function
Data hold function
Large LCD with backlight
Zeroing, offset, and data compensation
Low battery alarm
Auto power off setup function
Over range indicator
SPECIFICATIONS: Pressure Range: ±2psi
Accuracy: ±0.3% FSO (at 25oC)
Repeatability: ±0.2% (Max±0.5%FSO)
Linearity/Hysteresis: ±0.29% FSO
Response Time:0.5sec
Over Range Indicator: Hi
Under Range Indicator: Lo
Operating Conditions:0 to 50°C (32 to 122°F)
Storage Conditions: -10 to 60°C (14 to 140°F)
Power supply:9V battery
Dimension2.4 x 5.7 x 1.4 inch
Weight:155g (battery included)
Set Includes: 1 x Manometer
1x English Operation Manual
1 x Carry case
1 x 9v Battery
1 x Metal Accessory
2 x Tube
1x Standard Packaging Box
