- Accuracy: +/-0.3%FSO(25°C)
- Repeatability: +/-0.2% (Maximum+/-0.5%FSO)
- USB port helps to export your data to your PC.
- 11 selectable pressure units: bar, mbar, kPa, kgf/cm2, mmHg, cmH2O, Ozf/in2, psi, inHg, inH2O, ftH2O
- Widely applied in measuring the pressure of fans, resistance/wind velocity/oven pressure/differential pressure of filter and monitoring the gas content in the air in process of combustion.
DESCRIPTIONS:

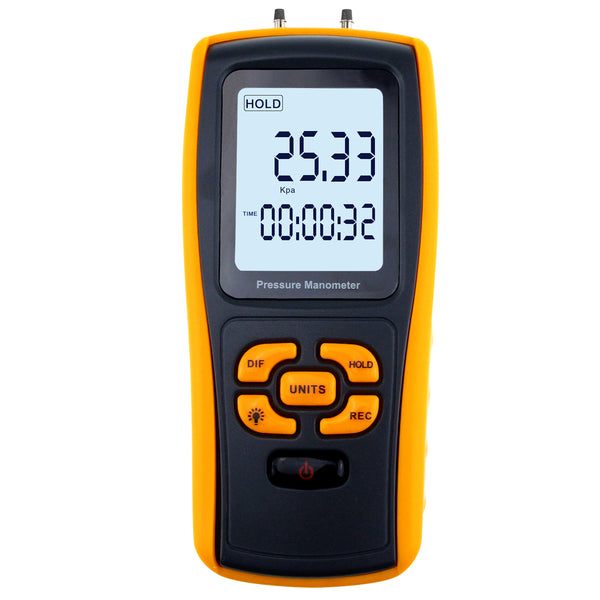

* This pressure manometer is widely applied in measuring the pressure of fans, resistance, wind velocity, oven pressure, differential pressure of filter, and monitoring the gas content in the air in process of combustion.
* There are 11 selectable pressure units: bar, mbar, kPa, kgf/cm2, mmHg, cmH2O, Ozf/in2, psi, inHg, inH2O, ftH2O. This unit features data save and adjustment, automatic turn-off, connecting with PC to read and export the data with a USB wire.
FEATURES:
Large LCD
Data Hold
With Differential Mode and Record Mode
USB Port
Reset And Data Adjustment
Low Battery Indication And Automatic Power Off
SPECIFICATIONS:
Accuracy: +/-0.3%FSO(25°C)
Repeatability: +/-0.2% (Maximum+/-0.5%FSO)
Linearity/Hysteresis: +/-0.29%FSO
Response: Typical 0.5s
Up Overload Indication: Err1
Down Overload Indication: Err2
Operating Temperature: 0~50°C
Storage Temperature: -10~60°C
USB Communication
Low Battery indication
Size: 7 x 3 x 1.2 inch
Weight: 235g
SET INCLUDES:
Pressure Manometer x 1
USB Wire x 1
CD x 1
Translucent Silica Gel Hose x 2
Transparent PVC Hose x 2
1.5V AAA Battery x 4
Operation Manual x1
Standard Packaging Box x 1
